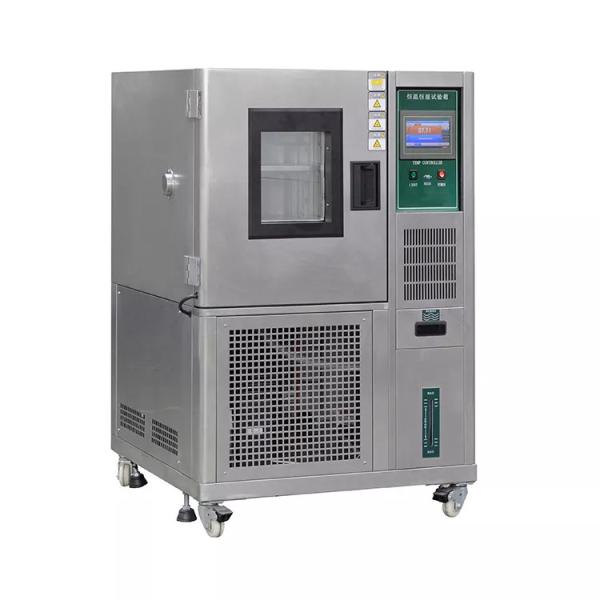

Temperature And Humidity Controlled Chambers With LCD Touch Screen
Product Description
Constant Temperature and Humidity test chamber
1. LCD touch screen
2. Inner material:SUS#304
3. TEMI 880 controller
Constant Temperature and Humidity test chamber is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing Constant Temperature and Humidity test chamber is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc
Specifications
| Model | YY1026-80 | YY1026-150 | YY1026-225 | YY1026-480 | YY1026-800 | YY1026-1000 |
| inner size(cm) | 105*165* 98 | 105*175* 108 | 115*190* 108 | 135*200*115 | 155*215*135 | 155*215*155 |
| Temparature Range | (Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC) |
| Humidity range | 20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition) |
| Temp analytic accuracy/ uniformity | 0.1ºC/±2.0ºC |
| Temperature Fluctuation | ±0.5ºC |
| Humidity analytic accuracy/ Humidity control accuracy | ±0.1%;±2.5% |
| Heat; cooling time | Heat up about 4.0°C/min ; Cooling about 1.0°C/min |
| Inner and outer materials | SUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer |
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials |
| Cooling system | Air cooling/single segment compressor(-40°C) ,air and water double segment compressor (-50°C~-70°C) |
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch super humidity over-temperature protection switch, fuse, failure warning system |
| Parts | Watching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cup |
| Compressor | Original France "Tecumseh" brand |
| Controller | TEMI South Korea |
| Power | AC220V 50/60Hz & 1 , AC380V 5 |
| weight(kg) | 150 | 220 | 270 | 320 | 450 | 580 | |
Company Profile
DONGGUAN YUYANG INSTRUMENT CO.,LTD is Located in Wanjiang District (Dongguan City, Guangdong Province,China),a famous historical town with prosperous industry and convenient transportation.We are a high-tech enterprise which is specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and etc. Decades of research and development strengthen the leading edge of YUYANG in this field, and established as an crucial role in R&D on high quality and high-cost performance of testing equipment. YUYANG's testing equipment are widely used in various field: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic etc.
